Build Step 4 - Add Small Capacitors

The Vibrati Punk Console uses 6 small capacitors. These are of a type called “Ceramic Discs” and look like brown discs with leads coming off one side. This type of capacitor can go in the circuit either way round. There are two different values of small capacitor in this circuit so make sure that you identify the odd-one out and put it in position C3.

The small capacitors are:

Capacitor

Value

Markings

C1, C2, C4, C7 and C8

100nF

“100n” or “104”

C3

10nF

“10n” or “103”

Solder these 6 capacitors to the board.

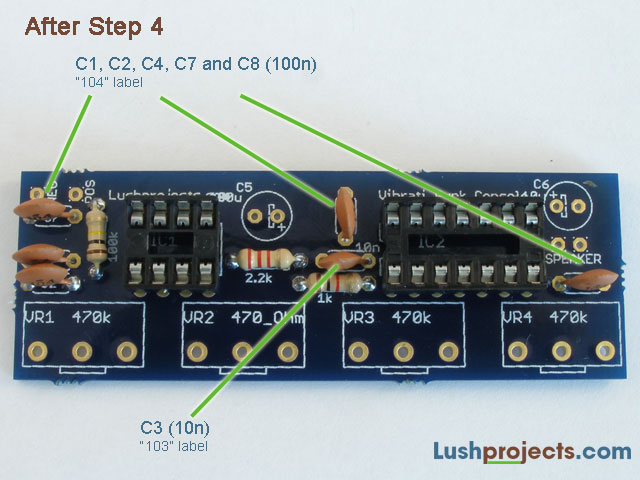

After Step 4
